Santaquin PI Tank
Santaquin · Utah County
- Open-Top Irrigation Tank
- 3.26 Million Gallons
- Location
- Santaquin
- County
- Utah County
- Year
- 2019
- Client / Owner
- Santaquin City / JUB
Project Overview

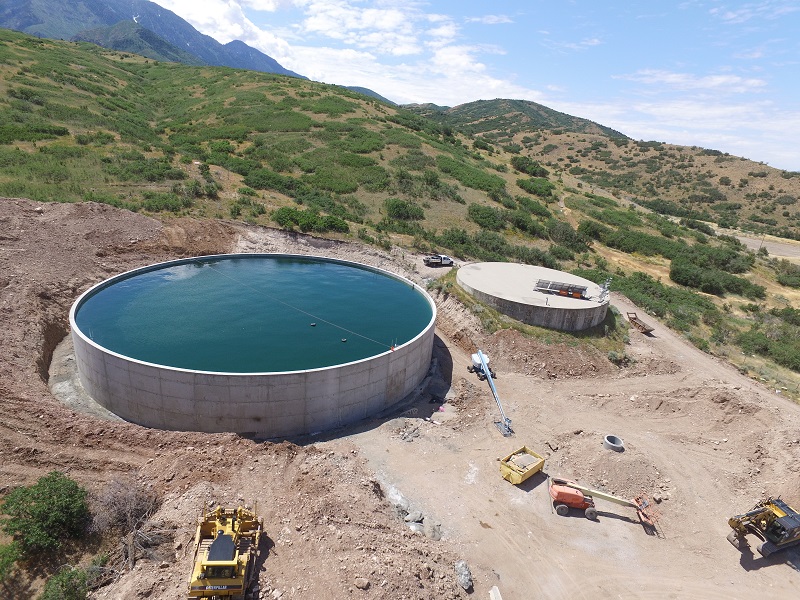

VanCon built a 3.26 MG open-top irrigation water tank with connection to pressurized irrigation pipes, an access road, a riprap-lined drainage path, and 200 linear feet of new pressured irrigation pipe. VanCon provided value engineering to replace a section of the ravine behind the tank with an underground pipe and two manholes, depositing excavated fill to create a level surface around the tank and enable vac truck access for future maintenance.
Project Highlights
- 3.26 MG open-top irrigation water tank
- 200 LF of new pressurized irrigation pipe
- Riprap-lined drainage path and access road
- Value engineering — ravine replaced with underground pipe and two manholes
- Level surface created around tank for vac truck maintenance access
Related Projects

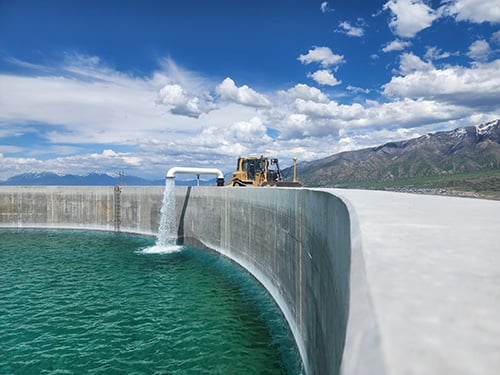

Santaquin Zone 11 West PI System
