Springville Bartholomew Pond and Trail
Springville · Utah County
- Regulating Pond
- 34 Acre-Feet
- Location
- Springville
- County
- Utah County
- Year
- 2014
- Client / Owner
- Springville City / JUB
Project Overview

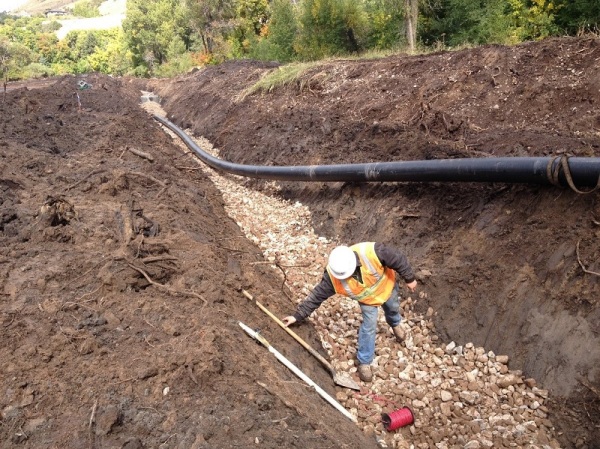

VanCon built a 34-acre-foot regulating pond with piping for a pressure irrigation system in Springville. The project included tree removal, landscaping, site grading for a city park, grading and paving of a park trail, rehabilitation of open channels, earth dams with filters and drains, seeding, erosion control, clay pond lining, construction of concrete water control structures, open trench excavation, asphalt road and trail repair, 4,800 linear feet of 26-inch HDPE pipe, 2,000 linear feet of 18 to 36-inch gravity-flow pipe, and 400 linear feet of 36-inch C-905 pipe. Remediation of disturbed land was successful.
Project Highlights
- 34 AC-FT regulating pond with pressure irrigation piping
- 4,800 LF of 26-inch HDPE pipe
- 2,000 LF of 18 to 36-inch gravity-flow pipe
- 400 LF of 36-inch C-905 pipe
- Clay pond lining and concrete water control structures
- Earth dams with filters and drains
- Park trail grading, paving, and asphalt repair
- Landscaping, seeding, erosion control, and land remediation
